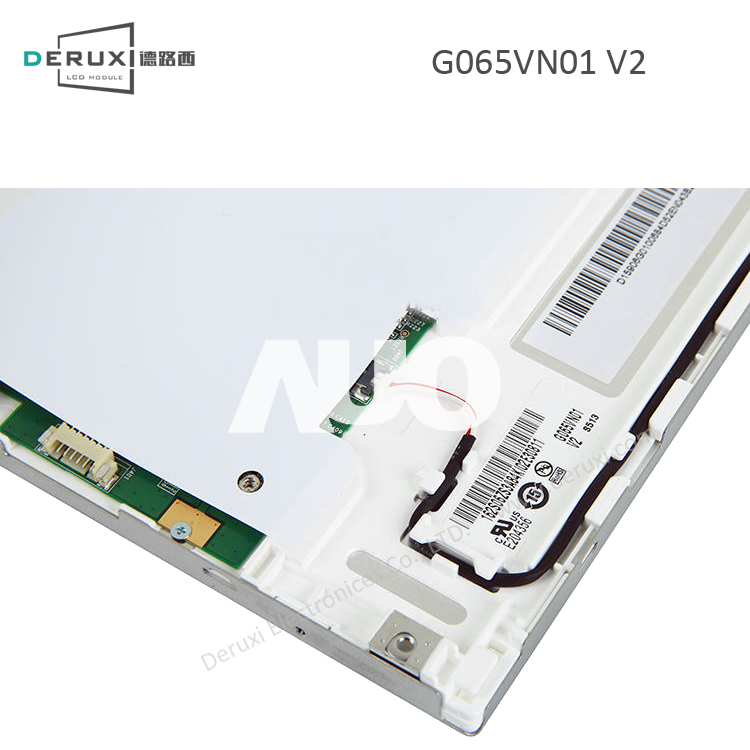

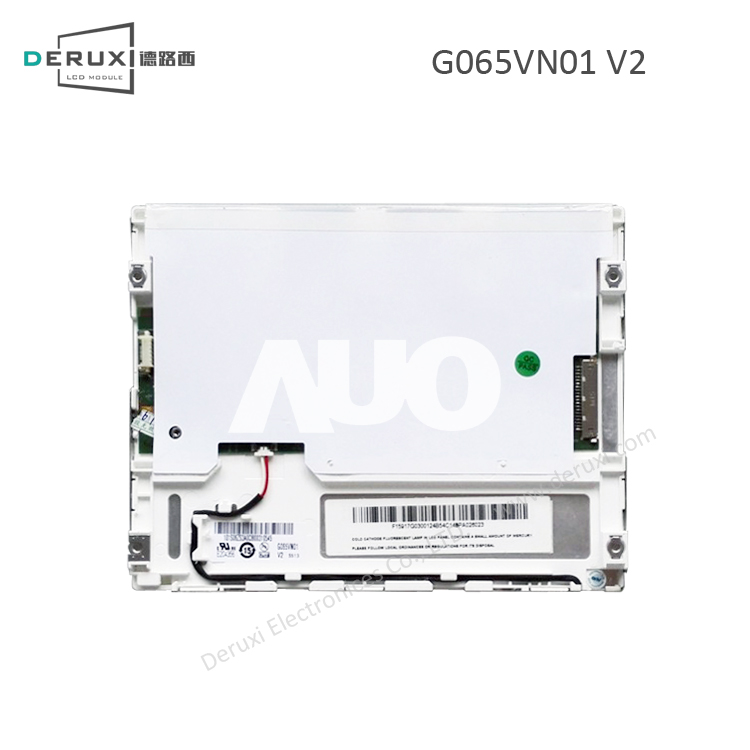

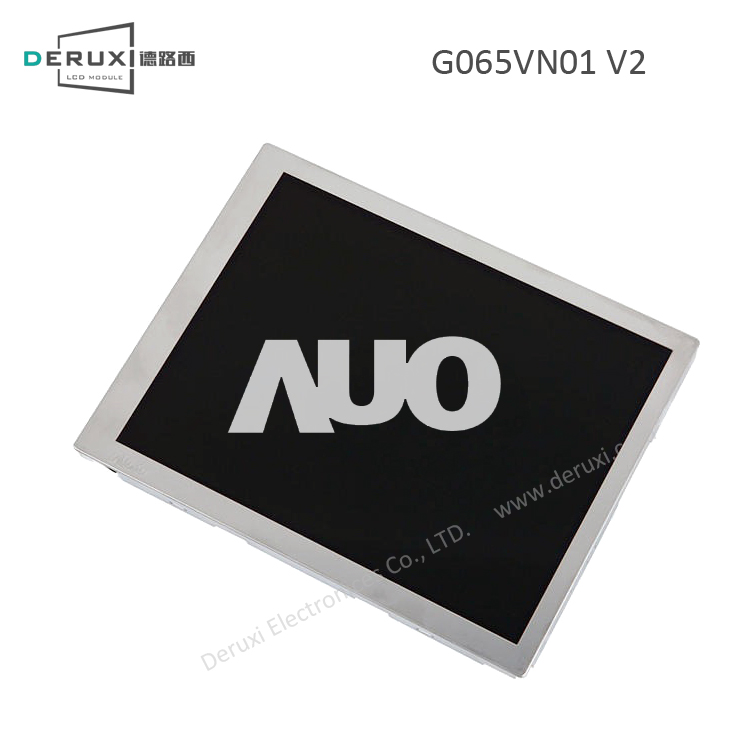

G065VN01 V2
- Brand
- AUO
- Panel Size
- 6.5"
- Number of Pixel
- 640(RGB)×480
- Luminance
- 800 cd/m²
- Viewing Angle
- 80/80/70/70
- Interface
- LVDS (1 ch, 6/8-bit)
- Contrast Ratio
- 600:1
- Operating Temp.
- -30 ~ 80 °C
- Production State
- In Production
| AUO G065VN01 V2 Parameters for details | |||
| 1、AUO LCD module G065VN01 V2 optical and mechanical details | |||
| LCD Type | LCM a-Si TFT-LCD | Display Mode | TN, Normally White, Transmissive |
| Best View | 6 o'clock | Display Colors | 262K/16.2M (6-bit / 6-bit + FRC) |
| Operating Temp. | -30 ~ 80 °C | Storage Temp. | -30 ~ 80 °C |
| Active Area(mm) | 132.48(H) × 99.36(V) mm | Outline Dim.(mm) | 153(H) × 118(V) mm |
| Pixel Pitch(mm) | 0.207×0.207 (H×V) [122PPI] | Depth(mm) | 10.9±0.3 mm |
| Aspect Ratio | 4:3 (H:V) | Orientation | Landscape type |
| 2、AUO LCD module G065VN01 V2 signal details | |||
| Voltage Supply(IDD) | 260/300mA (Typ./Max.) | Current Supply(VDD) | 3.3V (Typ.) |
| Power Consumption | 0.86W (Typ.) | Interface Type | Connector |
| Signal Type | LVDS (1 ch, 6/8-bit) | Interface Pitch(mm) | 1.0 |
| Interface Quantity(pcs) | 1 | Interface Pins | 20 |
| Connector brand and model | STM MSB24013P20 | ||
| 3、AUO LCD module G065VN01 V2 backlight Details | |||
| Backlight Type | WLED | LEDs Quantity | - |
| Voltage Supply(IBL) | 0.25A (Typ.) | Current Supply(VBL) | 9/12/20V (Min./Typ./Max.) |
| BL Power Consumption | 3.0W (Typ.) | BL Life Time | 50K (Min.) 小时 |
| Interface Type | Connector | Interface Pitch(mm) | 1.25 |
| Interface Quantity(pcs) | 1 | Interface Pins | 6 |
| Connector brand and model | STM MS24016RHD | ||
| 4、AUO LCD module G065VN01 V2 packing details | |||
| LCM weight(g) | 170g (Typ.) | Quantity/Carton (pcs) | 80 |
| N.W. (Kgs) | 13.6 | G.W. (Kgs) | 16.60 |
| Box Size | 425×386×430 mm (L×W×H) | ||
|
*Supplementary note: the above G065VN01 V2 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide G065VN01 V2 product specifications, products are subject to the manufacturer PDF specifications. |
|||
