| Feature |
Specification |
Unit |
| Signal processing |
Brand |
Disea |
- |
| Function Description |

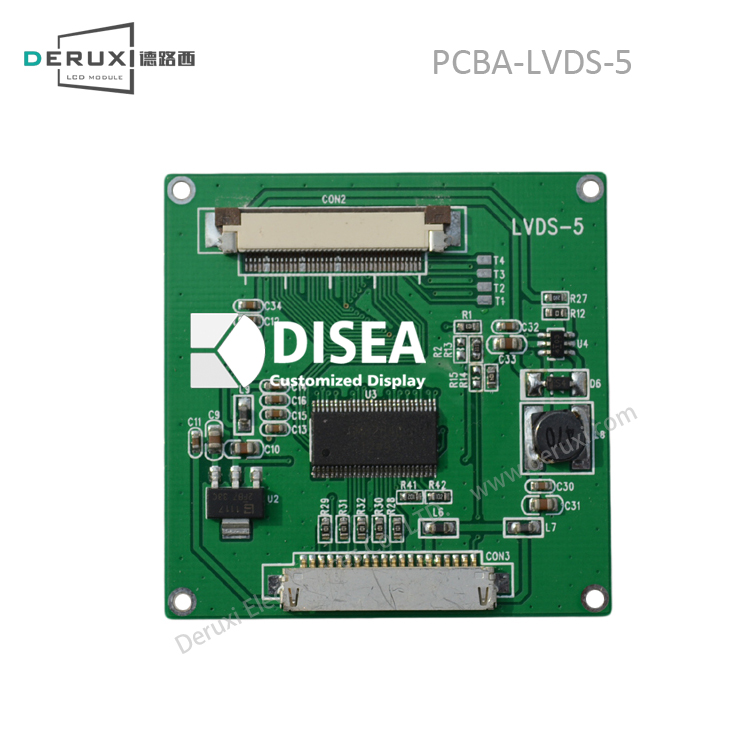

This product can convert the LVDS signal from the industrial control motherboard to RGB signal, with its own backlight driving circuit to spot the screen, easy to operate. |
- |
| Input Signal |
20PIN LVDS 1.0MM(with backlight driver) |
- |
| Output signal |
40PIN RGB 0.5MM |
- |
| Electrical characteristics |
Input voltage |
5 |
V |
| Operating current |
200 |
mA |
| Crystal oscillator |
- |
MHz |
| Operating temperature |
-10℃～+60℃ |
℃ |
| Operating humidity |
90% |
RH |
| Storage temperature |
-20℃～+70℃ |
℃ |
| Storage humidity |
90% |
RH |
| Construction feature |
Main board dimension |
50.0*50.0 |
mm |
| Keypad size |
- |
mm |
| Adaptable display |
LCD interface |
40PIN-RGB |
- |
| Resolutions supported |
Depending on the resolution of the driver screen |
|
| Compatible display models |
AT043TN24 V.1/AT043TN25 V.1/HSD050IDW1-A20/LW500AC9001/AT050TN43 V.1and other 40P small to medium sized RGB screens. |
*Supported and not limited to the above models |
