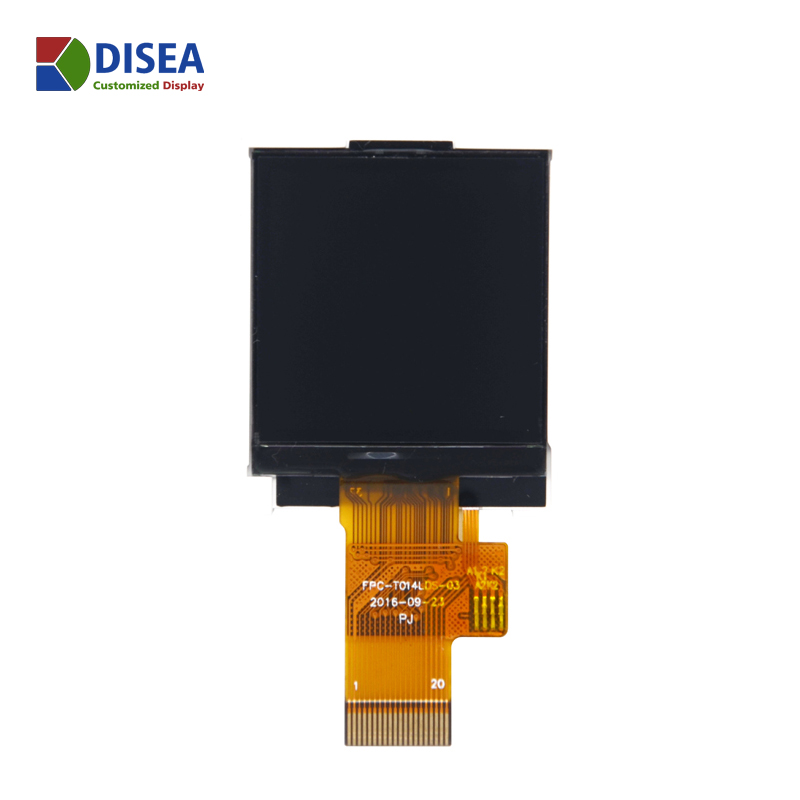

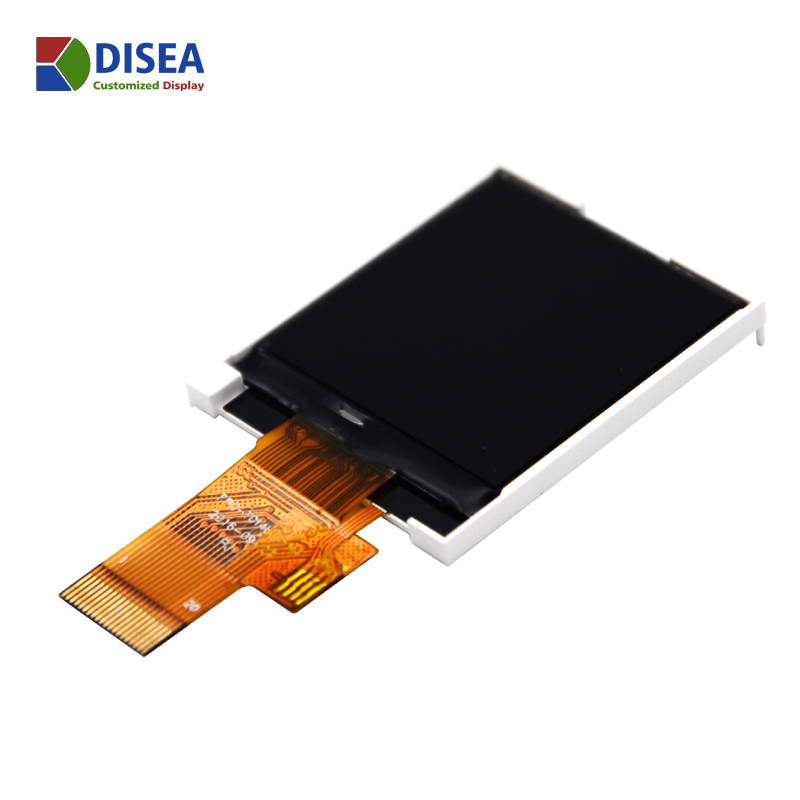

ZW-T014LDS-02
- Brand
- Disea
- Panel Size
- 1.41''
- Number of Pixel
- 128(RGB)×128
- Luminance
- 150 cd/m²
- Viewing Angle
- 55/65/65/65
- Interface
- MCU 8-bit
- Contrast Ratio
- 500:1
- Operating Temp.
- -30 ~ 80 °C
- Production State
- In Production
| Feature | Specification | Unit | |
| Display Spec | Brand | Disea | - |
| Size | 1.41 | inch | |
| Resolution | 128*128 | dots | |
| Pixel pitch | 0.19725(H)*0.19725(V) | mm | |
| Display Mode | TN/NW | - | |
| Viewing Direction | 6 | o'clock | |
| Gray Scale Inversion Direction | 12 | o'clock | |
| Luminance | 150 | cd/m2 | |
| Mechanical Characteristics |
LCM (W * H * D) | 30.90*36.50*2.50 | mm |
| Active Area (W * H ) | 25.25*25.25 | mm | |
| With /Without TP | Without TP | - | |
| LED Numbers | 2-LED | pcs | |
| Operation temperature | -30~+80 | ℃ | |
| Storage temperature | -35~+85 | ℃ | |
| Electrical Characteristics |
Interface | MCU-8bit/20PIN | - |
| LCM Power Supply | 2.8 | V | |
| LED Power Supply | 3.0 | V | |
| Color Depth | 262K | - | |
| LCM Driver IC | ST7735 | - | |
| CTP Dricer IC | - | - | |
