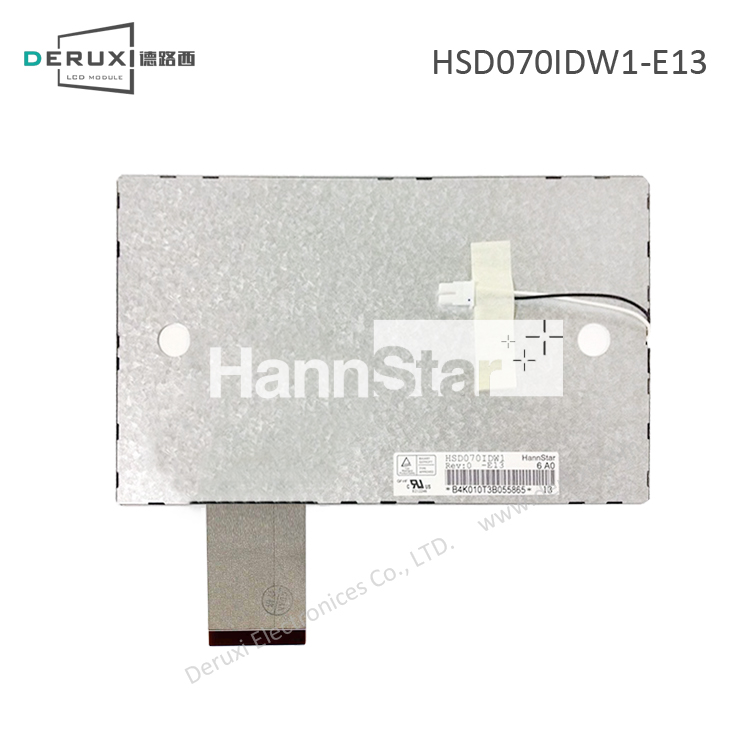

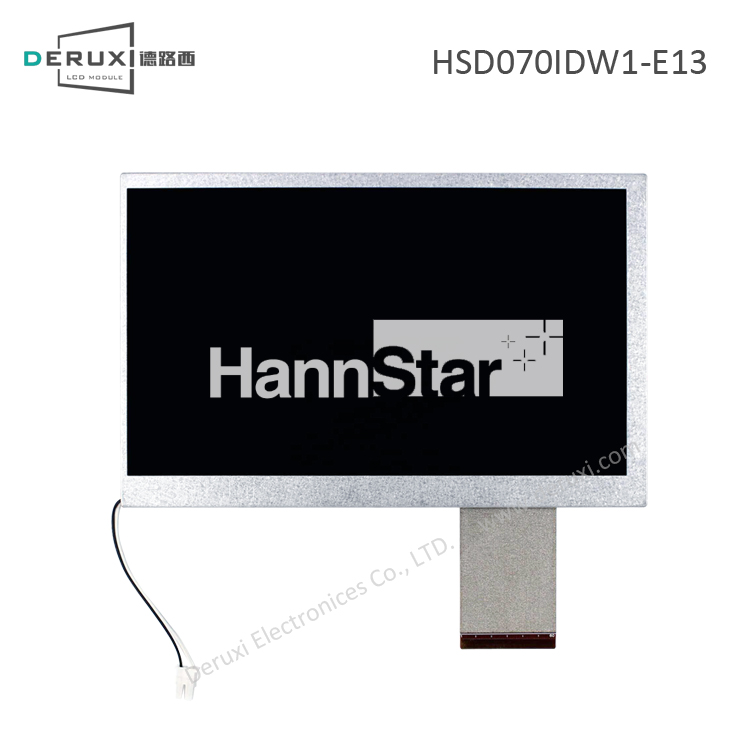

| Hannstar LCD Module HSD070IDW1-E13 Parameters for details |
| 1、Hannstar LCD module HSD070IDW1-E13 optical and mechanical details |
| LCD Type |
LCM a-Si TFT-LCD |
Display Mode |
TN Normally White,Transmissive |
| Best View |
6 o'clock |
Display Colors |
262K/16.2M (6-bit / 6-bit + FRC) |
| Operating Temp. |
-20~70℃ |
Storage Temp. |
-30~80℃ |
| Active Area(mm) |
153.6(W)×86.64(H) mm |
Outline Dim.(mm) |
164.9(W)×100(H) mm |
| Pixel Pitch(mm) |
0.192×0.1805 mm [134PPI] |
Depth(mm) |
5.7 (Typ.) mm |
| Aspect Ratio |
16:9 (H:V) |
Orientation |
Landscape type |
| 2、Hannstar LCD module HSD070IDW1-E13 signal details |
| Voltage Supply(IDD) |
5.4/24.1/0.13/0.34mA (Typ.)(ICC/IAVDD/IGH/IGL) |
Current Supply(VDD) |
3.3/10/15/-7V (Typ.)(VCC/AVDD/VGH/VGL) |
| Power Consumption |
- |
Interface Type |
Parallel RGB (1 ch, 6/8-bit) |
| Signal Type |
FPC |
Interface Pitch(mm) |
0.5 |
| Interface Quantity(pcs) |
1 |
Interface Pins |
60 |
| Connector brand and model |
- |
| 3、Hannstar LCD module HSD070IDW1-E13 backlight Details |
| Backlight Type |
WLED |
LEDs Quantity |
3S9P |
| Voltage Supply(IBL) |
180mA (Typ.) |
Current Supply(VBL) |
10.5V (Typ.) |
| BL Power Consumption |
1.47w(Typ.) |
BL Life Time |
20K (Min.) Hours |
| Interface Type |
Connector |
Interface Pitch(mm) |
3.5 mm |
| Interface Quantity(pcs) |
1 |
Interface Pins |
2 |
| Connector brand and model |
JST BHSR-02VS-1 |
LED Driver |
- |
| 4、Hannstar LCD module HSD070IDW1-E13 packing details |
| LCM weight(g) |
170g (Typ.) |
Quantity/Carton (pcs) |
80 |
| N.W. (Kgs) |
13.6 |
G.W. (Kgs) |
- |
| Box Size |
451×375×284 mm |
| *Supplementary note: the above HSD070IDW1-E13 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide HSD070IDW1-E13 product specifications, products are subject to the manufacturer PDF specifications. |
