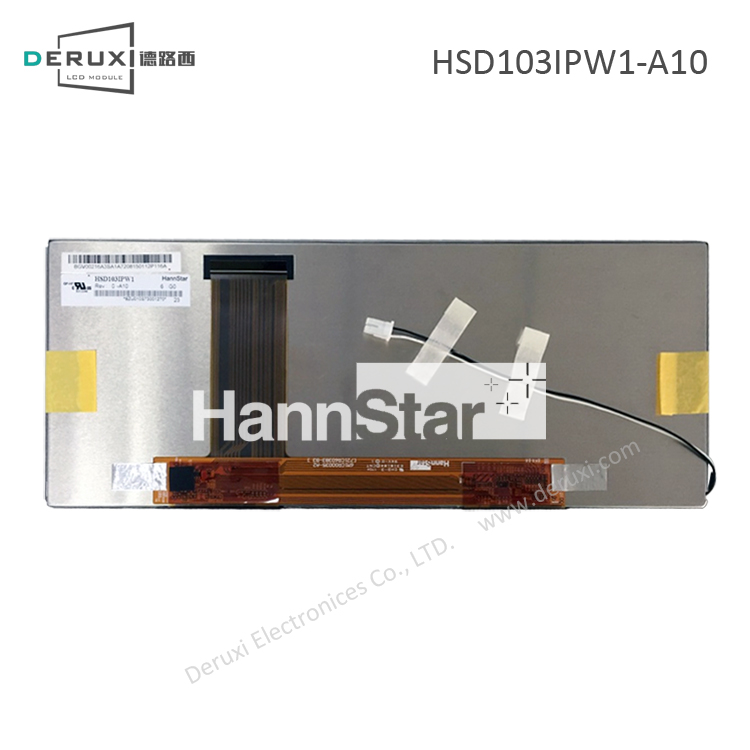

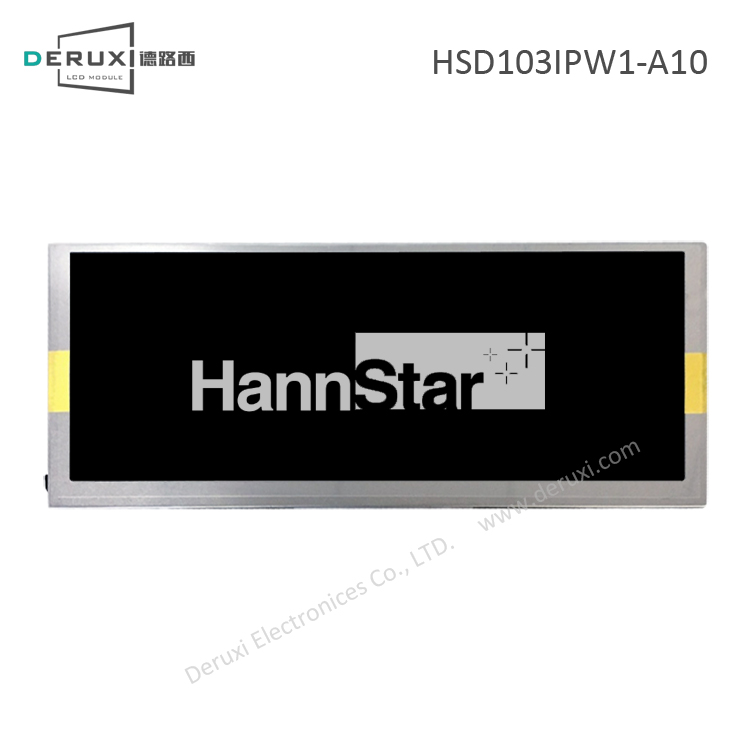

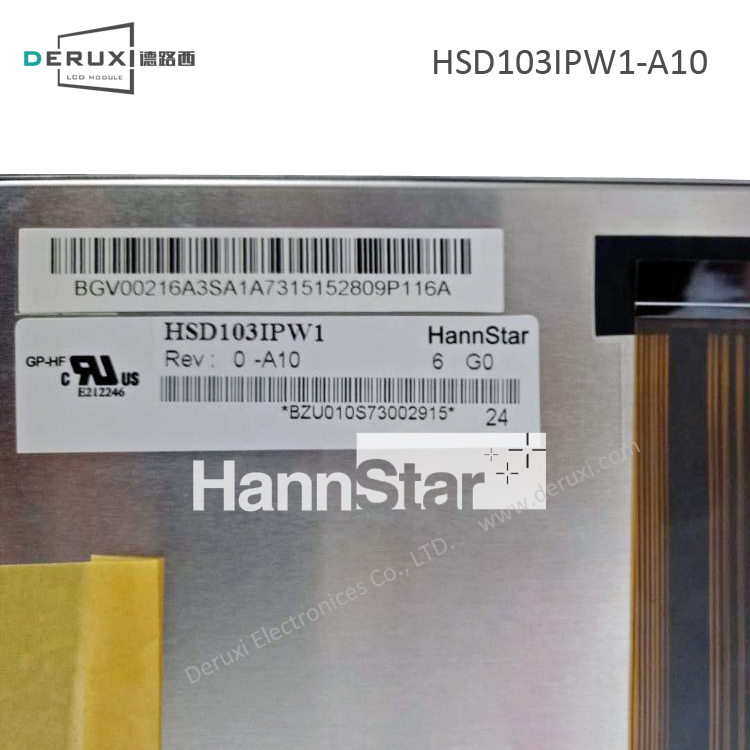

| Hannstar LCD Module HSD103IPW1-A10 Parameters for details |
| 1、Hannstar LCD module HSD103IPW1-A10 optical and mechanical details |
| LCD Type |
LCM a-Si TFT-LCD |
Display Mode |
IPS Pro Normally Black,Transmissive |
| Best View |
ALL |
Display Colors |
262K/16.7M (6-bit / 6-bit + Hi-FRC) |
| Operating Temp. |
-30 ~ 85 °C |
Storage Temp. |
-30 ~ 85 °C |
| Active Area(mm) |
243.84(H) × 91.44(V) mm |
Outline Dim.(mm) |
265.2(H) × 109.85(V) mm |
| Pixel Pitch(mm) |
0.1905×0.1905 (H×V) [133PPI] |
Depth(mm) |
7.0/8.65 (Typ./Max.) |
| Aspect Ratio |
8:3 (H:V) |
Orientation |
Landscape type |
| 2、Hannstar LCD module HSD103IPW1-A10 signal details |
| Voltage Supply(IDD) |
15/45/0.5/0.8mA (Typ.)(IDD/AIDD/IGH/IGL) |
Current Supply(VDD) |
3.3/12.4/20/-10.0V (Typ.)(VDD/AVDD/VGH/VGL) |
| Power Consumption |
2.0W (Typ.) |
Interface Type |
LVDS (1 ch, 6/8-bit) |
| Signal Type |
FPC |
Interface Pitch(mm) |
0.5 |
| Interface Quantity(pcs) |
1 |
Interface Pins |
60 |
| Connector brand and model |
- |
| 3、Hannstar LCD module HSD103IPW1-A10 backlight Details |
| Backlight Type |
WLED |
LEDs Quantity |
8S3P |
| Voltage Supply(IBL) |
180mA (Typ.) |
Current Supply(VBL) |
25.6/27.2V (Typ./Max.) |
| BL Power Consumption |
4.61/4.9W (Typ./Max.) |
BL Life Time |
30K (Min.) Hours |
| Interface Type |
Connector |
Interface Pitch(mm) |
3.5 mm |
| Interface Quantity(pcs) |
1 |
Interface Pins |
2 |
| Connector brand and model |
JST BHSR-02VS-1 |
LED Driver |
- |
| 4、Hannstar LCD module HSD103IPW1-A10 packing details |
| LCM weight(g) |
290g (Typ.) |
Quantity/Carton (pcs) |
20 |
| N.W. (Kgs) |
5.8 |
G.W. (Kgs) |
- |
| Box Size |
360×340×195 mm (L×W×H) |
| *Supplementary note: the above HSD103IPW1-A10 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide HSD103IPW1-A10 product specifications, products are subject to the manufacturer PDF specifications. |
