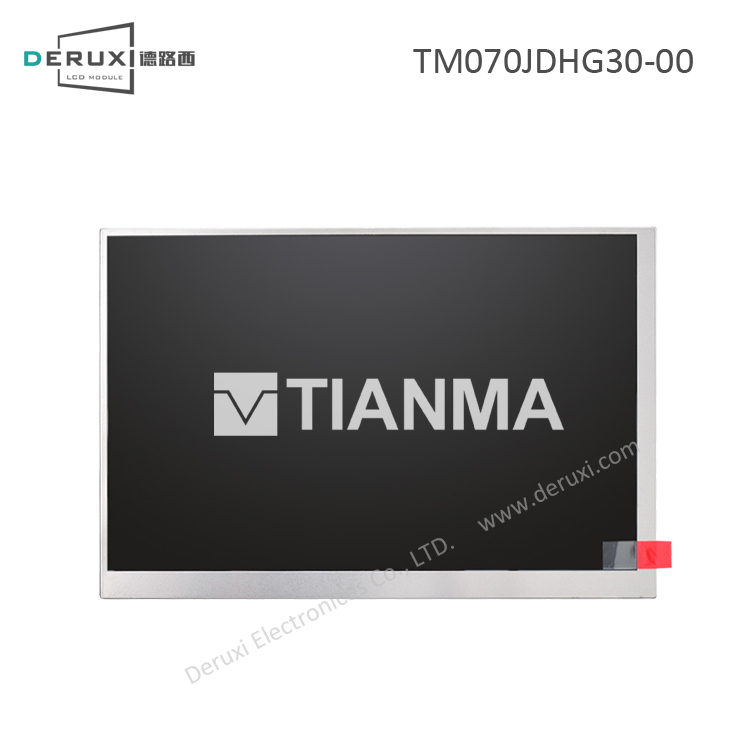

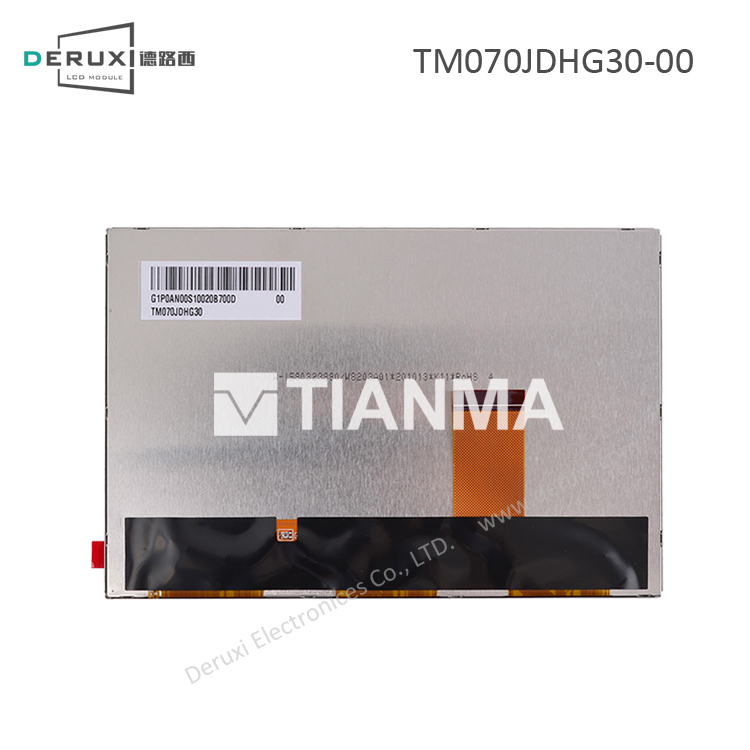

TM070JDHG30-00
- Brand
- TIANMA
- Panel Size
- 7.0"
- Number of Pixel
- 1280(RGB)×800
- Luminance
- 400 cd/m²
- Viewing Angle
- 88/88/88/88
- Interface
- LVDS (1 ch, 8-bit)
- Contrast Ratio
- 800:1
- Operating Temp.
- -20 ~ 70 °C
- Production State
- In Production
| TIANMA LCD Module TM070JDHG30-00 Parameters for details | |||
| 1、Tianma LCD module TM070JDHG30-00 optical and mechanical details | |||
| LCD Type | LCM a-Si TFT-LCD | Display Mode | SFT Normally Black,Transmissive |
| Best View | All Viewing | Display Colors | 16.7M (8-bit) |
| Operating Temp. | -20 ~ 70 °C | Storage Temp. | -30 ~ 85 °C |
| Active Area(mm) | 149.76(W)×93.6(H) mm | Outline Dim.(mm) | 161(W)×107(H) mm |
| Pixel Pitch(mm) | 0.117×0.117 mm [217PPI] | Depth(mm) | 3.35 (Typ.) mm |
| Aspect Ratio | 16:10 (H:V) | Orientation | Landscape type |
| 2、Tianma LCD module TM070JDHG30-00 signal details | |||
| Voltage Supply(IDD) | 53/41.5/0.41/0.41mA (Typ.)(IDD/AIDD/IGH/IGL) | Current Supply(VDD) | 3.3/10.4/16/-6.8V (Typ.)(VDD/AVDD/VGH/VGL) |
| Power Consumption | - | Interface Type | LVDS (1 ch, 8-bit) |
| Signal Type | FPC | Interface Pitch(mm) | 0.5 |
| Interface Quantity(pcs) | 1 | Interface Pins | 40 |
| Connector brand and model | - | ||
| 3、Tianma LCD module TM070JDHG30-00 backlight Details | |||
| Backlight Type | WLED | LEDs Quantity | 3S7P |
| Voltage Supply(IBL) | 140mA (Typ.) | Current Supply(VBL) | 9.3/10.2V (Typ./Max.) |
| BL Power Consumption | 1.3/1.43W (Typ./Max.) | BL Life Time | 30K (Typ.) hours |
| Interface Type | Included in panel signal interface | Interface Pitch(mm) | - |
| Interface Quantity(pcs) | - | Interface Pins | - |
| Connector brand and model | - | LED Driver | - |
| 4、Tianma LCD module TM070JDHG30-00 packing details | |||
| LCM weight(g) | 120g (Typ.) | Quantity/Carton (pcs) | - |
| N.W. (Kgs) | - | G.W. (Kgs) | - |
| Box Size | - | ||
|
*Supplementary note: the above TM070JDHG30-00 data for reference only, if the individual parameters are not accurate, you can contact our customer service to provide TM070JDHG30-00 product specifications, products are subject to the manufacturer PDF specifications. |
|||
